Rivtite Dome Head - Alum body/ Alum Mandrel c/w Neoprene Washer
Product Code: ARV6606-6-4W
Head Type: Dome Head
Min Grip Range (mm): 1.5
Max Grip Range (mm): 6.4
Shear N: 3004
Tensile N: 2002
Body Mat: Alum AI5056
Mandrel Mat: Alum A17A03
Washer: EPDM Neoprene
Hole: 5.3 - 5.5mm

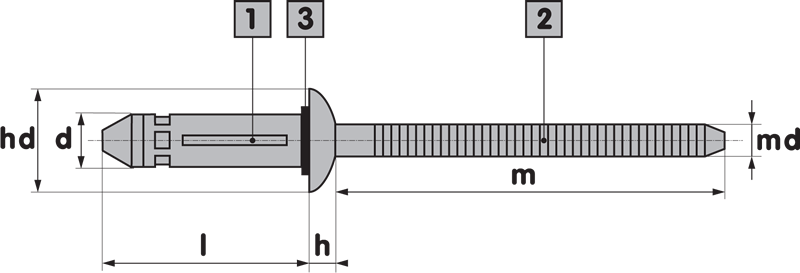

hd: 11.7 + 0.0 /- 0.8mm
d: 5.2 + 0.09 /- 0.1mm
l: 19.1mm
h: 2.5 +/ 0.3mm
m: 26mm
md: 2.95mm
